Microsoft Teams

Covers the SystemChannelTeams records Brain Station 23 owns: the Azure App credentials every organization's bots run on, the bot pool that lets multiple Azure App Registrations coexist, and the OAuth consent flows those credentials drive. For the per-organization bot setup (Azure app registration, console walkthrough, deployment errors), see Channels → Microsoft Teams.

Fields on a system config

1. app_id: Azure Application (client) ID
2. app_password: Azure client secret, stored encrypted
3. tenant_id: Azure Directory (tenant) ID
4. developer_website_url: required, must start with https://

1. Fields

Field	Type	Constraints
app_id	string	required, ≤100 chars
app_password	text	required
tenant_id	string	required, ≤100 chars
developer_name	string	required, ≤32 chars, default NeuraFlow
developer_website_url	string	required, ≤500 chars, must start with https://
mpn_id	string	optional, ≤10 chars
bot_scopes	JSON array	default ["personal", "team", "groupChat"]
organization_id	UUID	optional; see org scoping
name	string	display name, ≤100 chars, default Default Bot
is_primary	bool	set by the server, not the client

developer_name, developer_website_url, mpn_id and bot_scopes feed the Teams app manifest generated per bot. They are not OAuth scopes. bot_scopes is the manifest's bots[].scopes array (personal chat / team / group chat contexts a user can add the bot in), unrelated to the Graph API permission scopes used for consent below.

validate_bot_data rejects developer_name over 32 chars, mpn_id over 10 chars, and developer_website_url not starting with https://, on both create and update (422).

2. Bot pool

More than one system config can exist. Base path /api/v1/system/channels/teams.

• The first config created becomes primary automatically. is_primary cannot be changed afterwards, and the primary cannot be deleted.
• Every later config is non-primary and must be created with at least one organizationIds entry. Creating a non-primary with none returns 422, as does giving the primary any.
• Assignments live in a separate OrganizationBotAssignment table, not the organization_id column on the config row. The column is a different mechanism: setting it scopes the config to one organization for listing, and has no effect on /available.
• GET /available?organizationId= returns the primary plus configs assigned to that org, minus any the org has already used.
• Deleting a config that a ChannelTeams row still references returns 400.

Routes require an authenticated user and nothing more. There is no role check.

3. Authorization

Each ChannelTeams bot picks a system config (explicitly, or the primary if none is set) and that config's app_id / app_password / tenant_id are what Microsoft's OAuth endpoints authenticate against. Three independent consents, built from MSGraphClient:

Consent	Scopes	Microsoft endpoint
Chat	Chat.Create, User.Read.All	/{tenant}/adminconsent
Push	TeamsAppInstallation.ReadWriteForUser.All	/{tenant}/adminconsent
Catalog	AppCatalog.ReadWrite.All, offline_access, openid, profile, email	/{tenant}/oauth2/v2.0/authorize?prompt=consent

Chat and push are Application-permission, tenant-wide admin consent: the admin approves once and it applies org-wide. Catalog is delegated: the admin signs in, and the resulting token (with a refresh token, since offline_access is requested) is stored against the bot and expires.

NeuraFlow-side endpoints that start each flow: POST /channels/teams/oauth/authorize (chat), POST /channels/teams/oauth/push/authorize (push), POST /channels/teams/oauth/catalog/authorize (catalog). Callbacks land on /channels/teams/oauth/callback and /channels/teams/oauth/catalog/callback, both registered as redirect URIs on the Azure app (see Channels → Microsoft Teams §1.2). The consent walkthrough from the admin's perspective, and the deployment error table, are documented there. This page only covers what credentials and scopes drive the flow.

note

The catalog consent's scope string, as actually sent by the authorize endpoint, includes openid profile email in addition to AppCatalog.ReadWrite.All offline_access. MSGraphClient.CATALOG_SCOPES only lists the latter two. The catalog authorize route builds its own scope string rather than calling generate_authorization_url(). Documented here as the scopes actually requested at runtime.

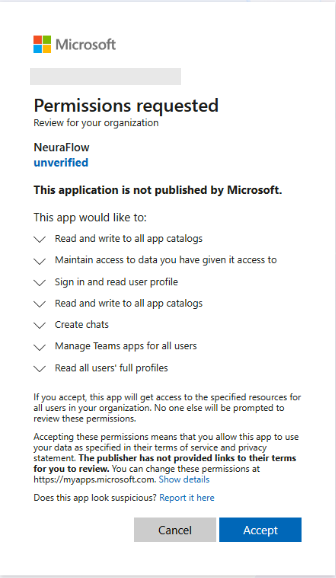

What the admin sees

With every permission from the tables above granted at once, the consent screen lists seven entries:

Each line maps back to a configured permission:

On screen	Permission
Create chats	Chat.Create
Read all users' full profiles	User.Read.All
Read and write to all app catalogs	AppCatalog.ReadWrite.All (Application)
Read and write to all app catalogs	AppCatalog.ReadWrite.All (Delegated)
Manage Teams apps for all users	TeamsAppInstallation.ReadWriteForUser.All
Sign in and read user profile	openid, profile, email
Maintain access to data you have given it access to	offline_access

AppCatalog.ReadWrite.All appears twice because it is requested as both an Application and a Delegated permission. This is expected, not a duplicate.

Granting only the mandatory chat consent produces a shorter list: Create chats and Read all users' full profiles only.

Publisher verification

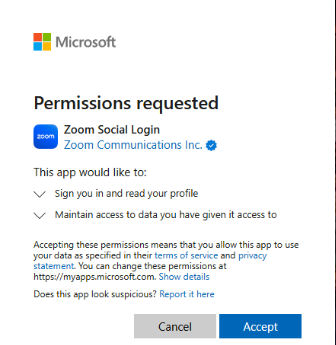

The screen above reads unverified and carries the warning This application is not published by Microsoft, because publisher verification has not been completed on the app registration. A verified publisher renders the company name with a badge instead:

The example is another vendor's app, shown only to illustrate the verified badge. Completing verification removes the unverified warning from the NeuraFlow screen.
